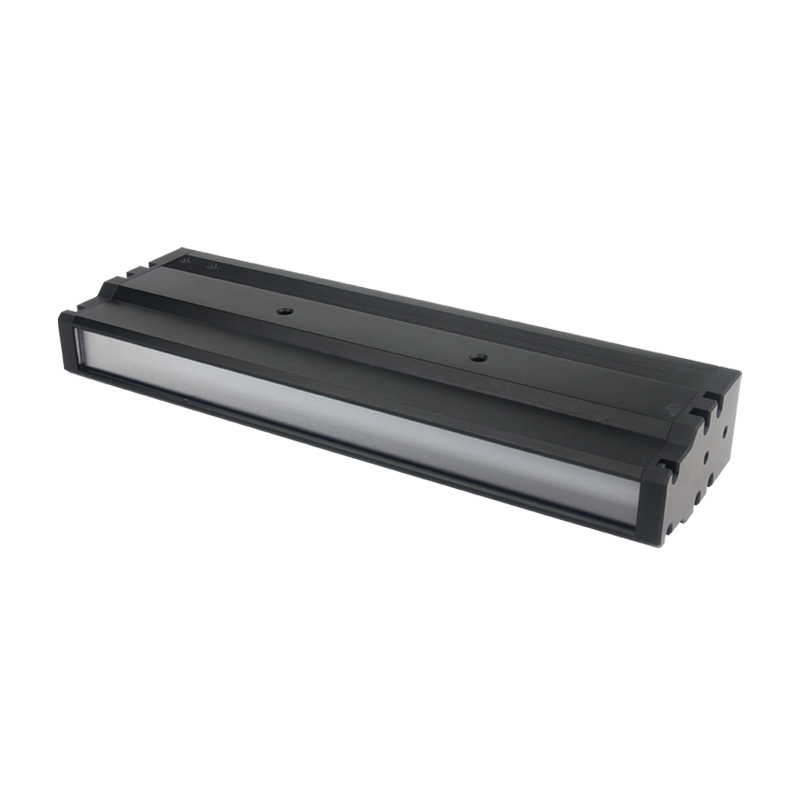

紫外UV线扫光源
产品特点
◆ 360nm、385nm、395nm、405nm多波长可选
◆ 其它波长可定制，定制范围：260-420nm
◆ 光功率（辐照值）可达7500mW/cm²
◆ 风冷、水冷等散热模式可选
◆ 长度、功率、光功率可根据客户需求定制
应用范围
◆ 电子产品固化贴合
◆ UV油墨固化
◆ 印刷品缺陷检测
◆ 玻璃/钢板/金属表面划痕检测
◆ 紫外线荧光材料检测
◆ 包装验证、污染物检测、非接触式质量控制
| 型号 | 波长 | 长度 | 电压 | 功率 |
|---|---|---|---|---|
| HS-LI-100-UV365 | 365nm | 100mm | 24V | 50/100W |
| HS-LI-100-UV385 | 385nm | 100mm | 24V | 50/100W |
| HS-LI-100-UV395 | 395nm | 100mm | 24V | 50/100W |
| HS-LI-100-UV405 | 405nm | 100mm | 24V | 50/100W |
| HS-LI-150-UV365 | 365nm | 150mm | 24V | 75/150W |
| HS-LI-150-UV385 | 385nm | 150mm | 24V | 75/150W |
| HS-LI-150-UV395 | 395nm | 150mm | 24V | 75/150W |
| HS-LI-150-UV405 | 405nm | 150mm | 24V | 75/150W |
| HS-LI-200-UV365 | 365nm | 200mm | 24V | 100/200W |
| HS-LI-200-UV385 | 385nm | 200mm | 24V | 100/200W |
| HS-LI-200-UV395 | 395nm | 200mm | 24V | 100/200W |
| HS-LI-200-UV405 | 405nm | 200mm | 24V | 100/200W |
| HS-LI-250-UV365 | 365nm | 250nm | 24V | 125/250W |
| HS-LI-250-UV385 | 385nm | 250nm | 24V | 125/250W |
| HS-LI-250-UV395 | 395nm | 250nm | 24V | 125/250W |
| HS-LI-250-UV405 | 405nm | 250nm | 24V | 125/250W |
| HS-LI-300-UV365 | 365nm | 300mm | 24V | 150/300W |
| HS-LI-300-UV385 | 385nm | 300mm | 24V | 150/300W |
| HS-LI-300-UV395 | 395nm | 300mm | 24V | 150/300W |
| HS-LI-300-UV405 | 405nm | 300mm | 24V | 150/300W |
| HS-LI-350-UV365 | 365nm | 350mm | 48V | 175/350W |
| HS-LI-350-UV385 | 385nm | 350mm | 48V | 175/350W |
| HS-LI-350-UV395 | 395nm | 350mm | 48V | 175/350W |
| HS-LI-350-UV405 | 405nm | 350mm | 48V | 175/350W |
| HS-LI-400-UV365 | 365nm | 400mm | 48V | 200/400W |
| HS-LI-400-UV385 | 385nm | 400mm | 48V | 200/400W |
| HS-LI-400-UV395 | 395nm | 400mm | 48V | 200/400W |
| HS-LI-400-UV405 | 405nm | 400mm | 48V | 200/400W |
| HS-LI-450-UV365 | 365nm | 450mm | 48V | 250/450W |
| HS-LI-450-UV385 | 385nm | 450mm | 48V | 250/450W |
| HS-LI-450-UV395 | 395nm | 450mm | 48V | 250/450W |
| HS-LI-450-UV405 | 405nm | 450mm | 48V | 250/450W |
| HS-LI-500-UV365 | 365nm | 500mm | 48V | 275/500W |
| HS-LI-500-UV385 | 385nm | 500mm | 48V | 275/500W |
| HS-LI-500-UV395 | 395nm | 500mm | 48V | 275/500W |
| HS-LI-500-UV405 | 405nm | 500mm | 48V | 275/500W |
